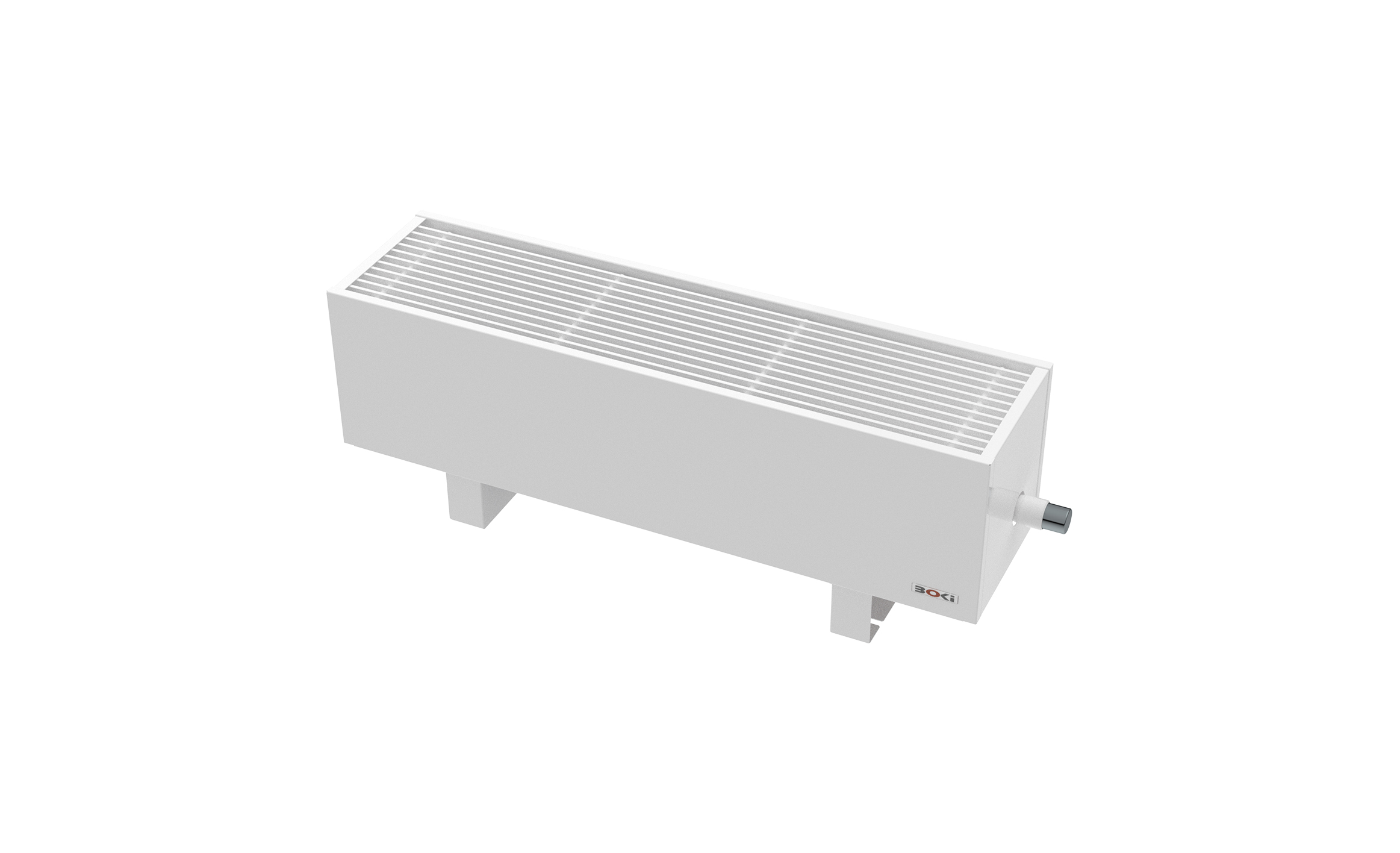

OnFloor Classic

Non-binding request

Standard dimensions

4
Standard heights

90, 140, 240 a 280 mm
4
Standard widths

96, 146, 186 a 236 mm
18
Standard lengths

od 600 do 2900 mm

Heat exchangers made of copper and aluminium, which react swiftly to the temperature requirements of the room, completely compensate for unpleasant cold penetration from the window. The OnFloor convector sheathing is not directly heated by the heating water and thus effectively prevents energy loss by radiation against the glazed surfaces (unlike conventional panel heaters), therefore reducing operating costs.

0,1 kW - 6 kW

Depending on the size of the body

Download

Here you will find important documents to download

Output OnFloor Classic

PDF / 432 KB

Pressure losses OnFloor Classic

PDF / 334 KB

Connection OnFloor Classic

PDF / 207 KB

Weight OnFloor Classic

PDF / 660 KB

Contact

Standard OnFloor Classic delivery includes:

unvarnished corrosion-resistant Cu/ Al low water content heat exchanger terminated with two inlets with G1/2″ by internal thread and 50 mm connection spacing,
sheathing with longitudinal duralumin grid,
sheathing and brackets are powder varnished in RAL 9016 white,

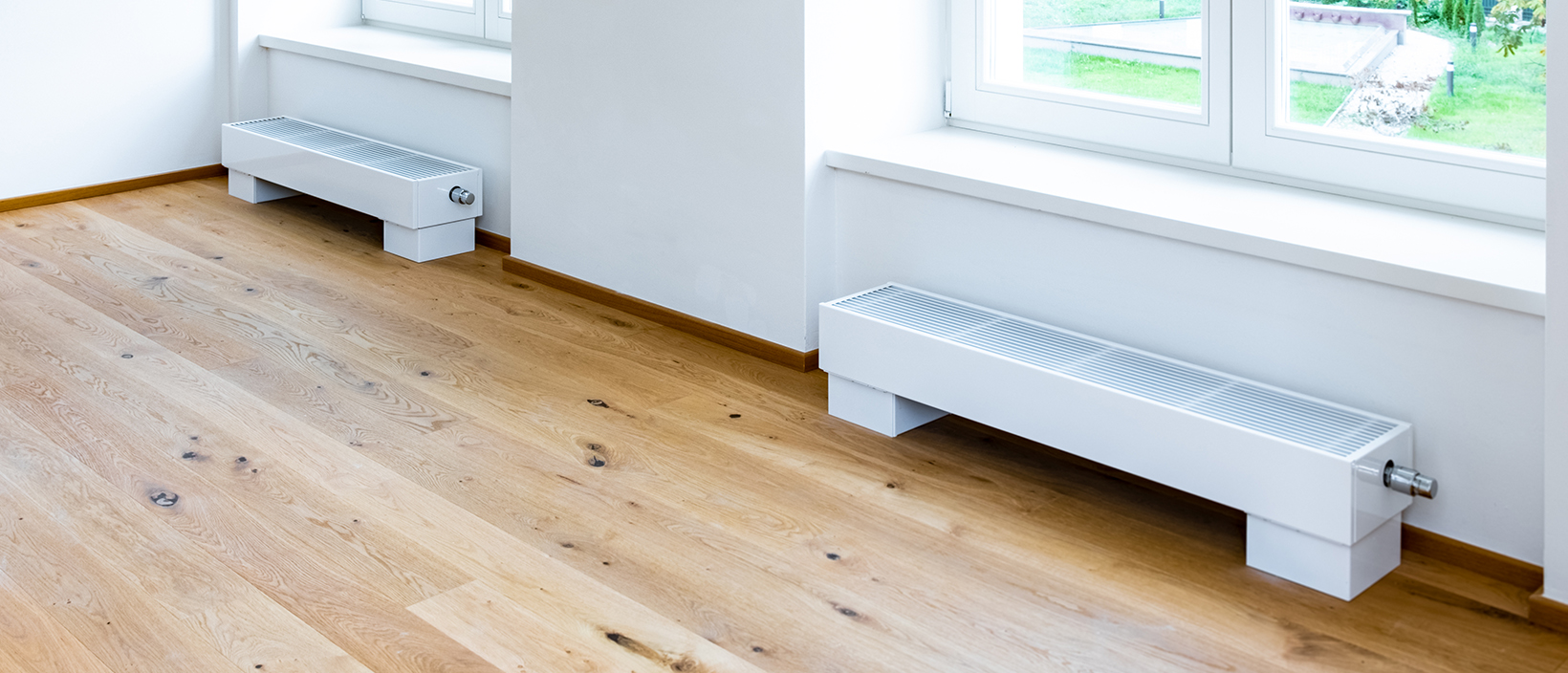

brackets for installation on finished or rough floor but also on wall,
automatic air-vent valve.

Optional delivery on request:

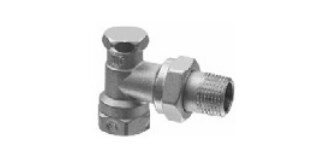

regulatory features at the water side – thermostatic valve, shut-off valve,
thermostatic head,
varnishing of sheathing and other components in a different color shade than white,
varnished heat exchanger.

Table with heat outputs

Height	09			14				24				28
Width	96	146	236	96	146	189	236	96	146	189	236	96	146	189	236
Length	Heat output power (W) in accordance with EN 442-75/65/20 °C
060	109	245	397	197	379	554	722	268	515	753	982	290	557	814	1061
070	128	286	463	229	442	647	842	311	601	880	1145	337	650	951	1238
080	145	326	529	262	506	739	963	356	688	1005	1310	385	744	1086	1416
090	164	368	596	295	569	832	1083	401	774	1132	1473	434	836	1223	1592
100	182	408	662	328	632	924	1203	446	860	1257	1636	482	929	1358	1768
110	200	449	728	360	695	1016	1324	490	945	1382	1801	529	1022	1494	1946
120	219	490	794	393	758	1108	1444	534	1031	1508	1964	578	1115	1630	2123
130	237	531	861	431	834	1220	1591	586	1134	1660	2163	634	1226	1795	2338
140	255	571	926	469	909	1332	1737	638	1237	1812	2362	689	1337	1959	2553
150	273	612	993	507	985	1444	1884	689	1340	1964	2562	745	1448	2123	2769
160	291	653	1059	544	1060	1556	2030	740	1443	2116	2761	800	1559	2287	2984
180	327	734	1190	619	1211	1779	2322	842	1648	2420	3158	910	1782	2616	3413
200	364	816	1323	695	1363	2003	2615	945	1854	2724	3556	1022	2004	2945	3844
220		898	1456	770	1514	2227	2908	1047	2059	3029	3955	1132	2226	3274	4275
240		979	1588	847	1666	2451	3200	1152	2266	3333	4352	1245	2449	3603	4704
260		1061	1720	925	1818	2675	3493	1258	2473	3638	4750	1360	2673	3932	5135
280		1176	1890	1008	1988	2192	3780	1372	2688	3953	5162	1477	2905	4272	5580
290		1233	1999	1041	2047	3010	3931	1416	2784	4094	5346	1530	3009	4425	5779

Grids

Since the cover grilles are the only visible element of the floor convectors, we offer a wide range of materials and designs. The basic division of the grid is with or without a cover strip. We produce grilles in the following materials: anodised aluminium, oak, beech, interior stainless steel.
