InFloor F2V

Non-binding request

Standard dimensions

1
Standard heights

(170 mm)
1
Standard widths

(340 mm)
6
Standard lengths

(od 850 do 2700 mm)

the highest heat output of all types of convectors
intensive heating of the interior
light cooling function
can be used as the only heat source
230 V for very high cooling capacity

0,9 kW - 4 kW

Depending on the size of the body

Download

Here you will find important documents to download

Pressure F2V

PDF / 414 KB

Losses F2V

PDF / 375 KB

Scheme 1 F2V

PDF / 232 KB

Scheme 2 F2V

PDF / 252 KB

Contact

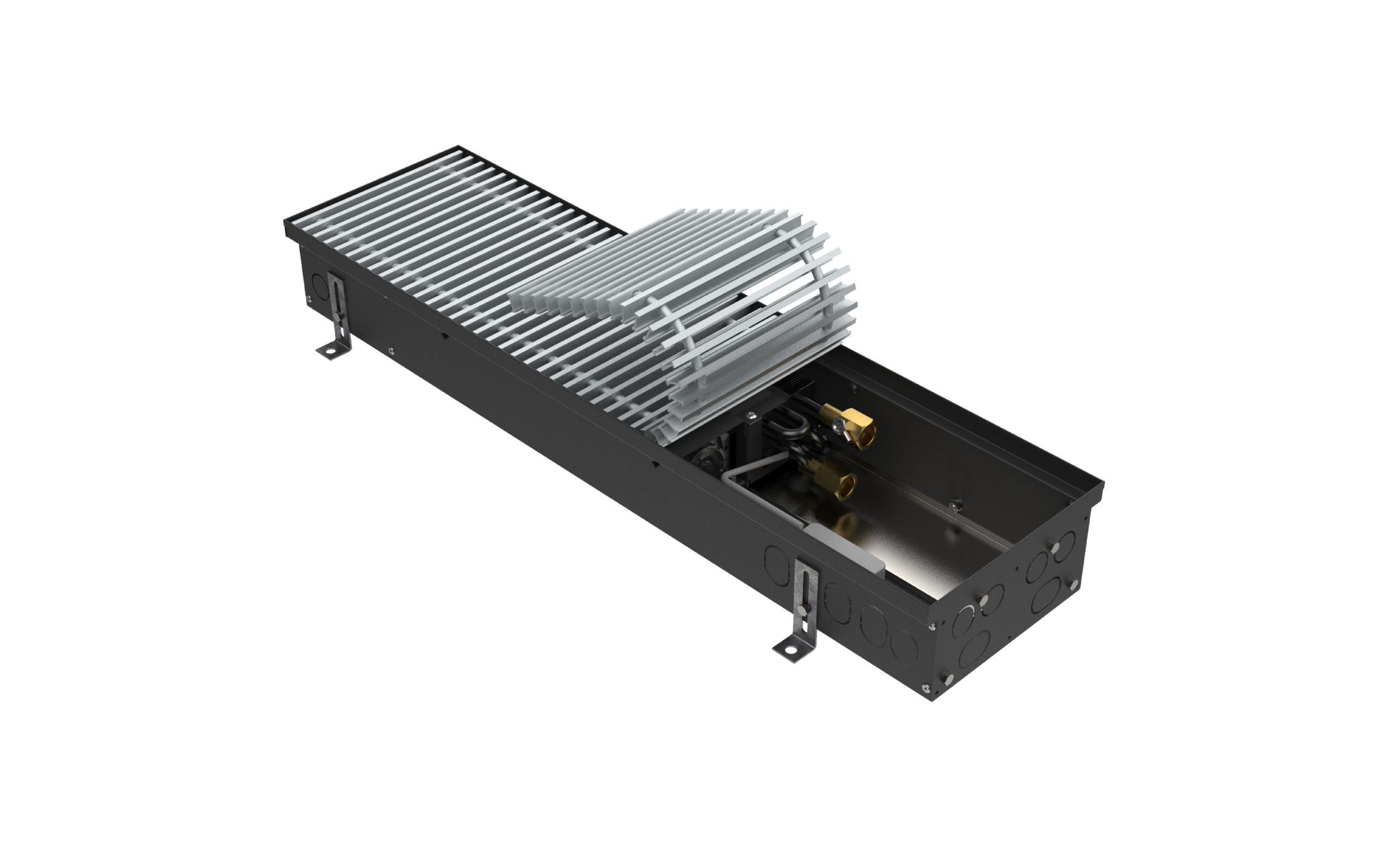

Standard InFloor F2V delivery includes:

duct made of galvanized sheet varnished in RAL 9005 black with condensate tray made of stainless steel sheet DIN 1.4301 (ČSN 17241, AISI 304)

duct fronts and sides with knock-out holes for water connection to the piping and cabling
accessories including M8x30 levelling bolts, setting brackets for fixing the duct to the floor with anchor function in concrete, rubber grommets for the breakaway holes and flexible stainless steel connection hoses with gaskets

Cu/Al heat exchanger, varnished in RAL 9005 black, ending with two pipes with internal thread G 1/2′ and provided with air-vent valve
tangential fan with 230 V motor and protective grille
sheet covering the connection to the piping system
chipboard cover to protect the convector duct, fan and heat exchanger during transport and installation

Optional delivery on request:

duct made of interior stainless steel sheet e.g. AISI 304 or AISI 316Ti or other material according to customer’s requirement
speed regulators, room temperature sensor, room thermostats, remote control of room thermostats
shut-off valve, thermostatic valve, electrothermal valve actuator
water temperature sensor for switching between heating and cooling
external three-sided heat and acoustic isolation of the entire duct
varnishing of the duct, heat exchanger and other components in a different RAL color
unvarnished heat exchanger

Table with heat outputs

Width	340
Height	170
Speed level	1	2	3	1	2	3
Length	Heating 75/65/20 °C			Cooling 8/14/28 °C
850	942	1675	2094	293	522	652
1200	1885	3351	4189	586	1042	1303
1600	2800	4978	6222	871	1549	1936
2100	3992	7096	8870	1242	2208	2760
2400	4879	8674	10842	1518	2699	3374
2700	5849	10398	12998	1820	3236	4045

Grids

Since the cover grilles are the only visible element of the floor convectors, we offer a wide range of materials and designs. The basic division of the grid is with or without a cover strip. We produce grilles in the following materials: anodised aluminium, oak, beech, interior stainless steel.

More information about grids
