InFloor FMS

Non-binding request

Standard dimensions

4
Standard heights

(90, 110, 140 a 190 mm)
6
Standard widths

(od 200 do 420 mm)
23
Standard lengths

(od 700 do 3600 mm)

best-selling trench convector category
simple, economical and noiseless option
low water content – fast response – energy savings
free convection heat transfer
suitable for combination with underfloor heating or for heating the rooms with lower heat loss

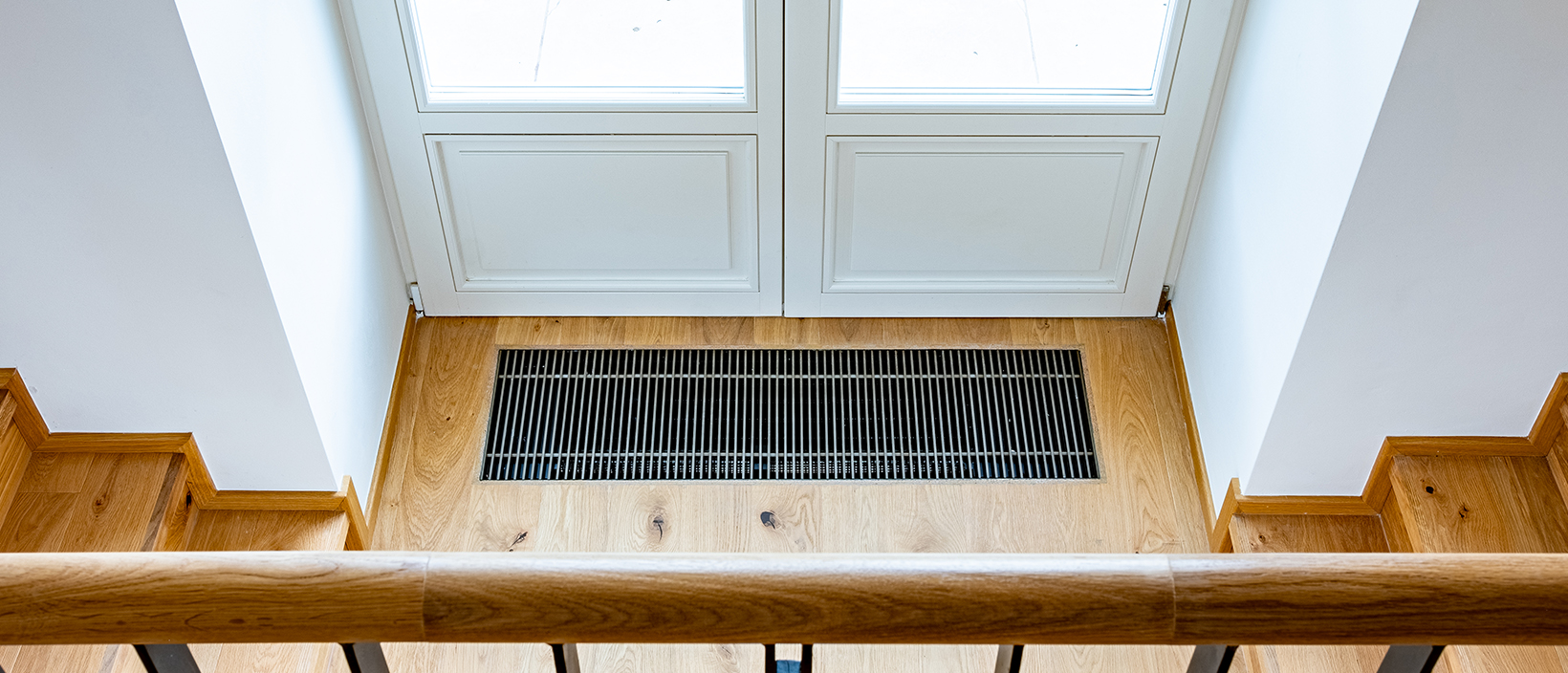

creates a thermal screen in front of large glazed areas
control by thermostatic head with separate control or thermostat with electrothermal actuator
customization – dimensions, shape modifications

0,1 kW - 3,3 kW

Depending on the size of the body

Download

Here you will find important documents to download

Outputs FMS

PDF / 535 KB

Weight and water volume FMS

PDF / 220 KB

Pressure losses FMS

PDF / 345 KB

Contact

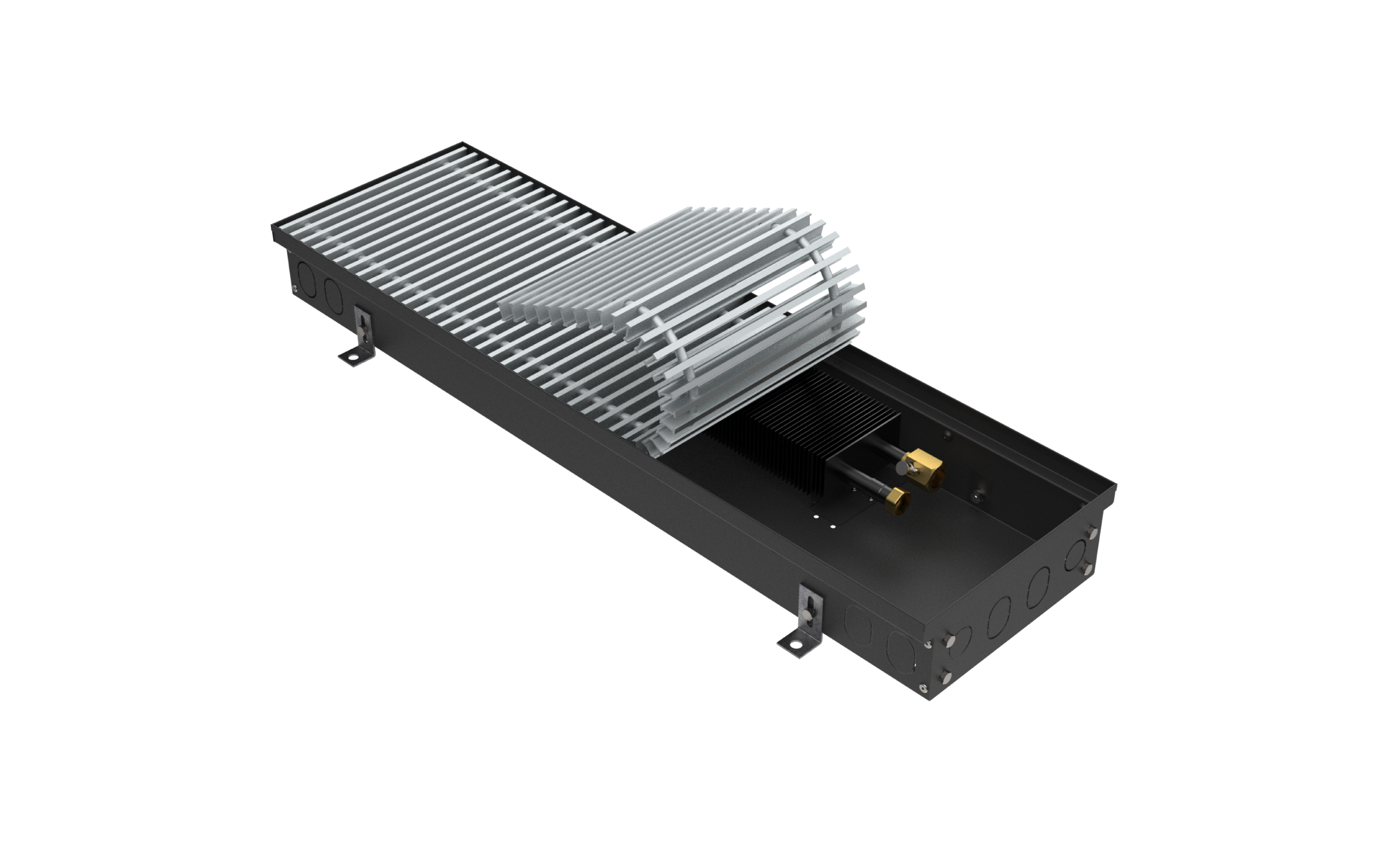

Standard InFloor FMS delivery includes:

duct made of galvanized sheet metal painted RAL 9005 black,

universal heat exchanger holders allowing right and left connection of the convector
duct fronts and sides with knock-out holes for water connection to the piping and cabling
all visible components of the duct painted in RAL 9005 black
accessories including M8x30 levelling bolts, setting brackets for fixing the duct to the floor with anchor function in concrete, rubber grommets for the breakaway holes and flexible stainless steel connection hoses with gaskets

Cu/Al heat exchanger, varnished in RAL 9005 black, ending with two pipes with internal thread G 1/2′ and provided with air-vent valve
sheet covering the connection to the piping system
chipboard cover to protect the convector duct, fan and heat exchanger during transport and installation

Optional delivery on request:

duct made of interior stainless steel sheet e.g. AISI 304 or AISI 316Ti or other material according to customer’s requirement
thermostatic valve, shut-off valve
thermostatic head with separate control
electrothermal valve actuator and room thermostat
external three-sided heat and acoustic isolation of the entire bathtub against step noise
varnishing of the duct, heat exchanger and other components in a different RAL color
unvarnished heat exchanger

Table with heat outputs

Width	20				25				28				30				34				42
Height	09	11	14	19	09	11	14	19	09	11	14	19	09	11	14	19	09	11	14	19	09	11	14	19
Length	Heat output (W) in accordance with EN 16430 – 75/65/20 °C
070	110	121	134	138	137	161	199	226	140	179	219	260	176	213	238	300	194	232	276	364	228	278	325	449
080	134	148	163	169	166	196	242	275	171	218	266	317	215	260	290	365	237	282	337	444	277	338	395	547
090	158	174	193	199	196	231	285	325	201	257	314	373	253	306	341	430	279	332	397	523	327	399	466	645
100	182	200	222	229	226	266	328	374	232	296	361	430	291	353	393	496	321	383	457	602	377	459	537	742
110	206	227	251	259	255	301	371	423	262	335	409	486	330	399	445	561	363	433	517	681	426	520	607	840
120	230	253	280	289	285	336	414	472	293	374	456	543	368	445	496	626	406	483	577	761	476	580	678	937
130	254	280	309	319	315	372	458	521	323	413	504	599	406	492	548	691	448	534	637	840	525	640	748	1035
140	278	306	339	349	344	407	501	571	354	452	551	656	445	538	600	756	490	584	697	919	575	701	819	1133
150	302	332	368	379	374	442	544	620	384	491	599	712	483	584	652	822	532	635	757	998	624	761	890	1230
160	326	359	397	409	404	477	587	669	415	529	646	769	521	631	703	887	575	685	817	1078	674	822	960	1328
170	326	359	397	409	404	477	587	669	415	529	646	769	521	631	703	887	575	685	817	1078	674	822	960	1328
180	374	411	455	470	463	547	673	767	476	607	741	882	598	724	807	1017	659	786	938	1236	773	942	1102	1523
190	374	411	455	470	463	547	673	767	476	607	741	882	598	724	807	1017	659	786	938	1236	773	942	1102	1523
200	422	464	514	530	523	617	760	866	537	685	836	995	675	816	910	1148	744	886	1058	1395	872	1063	1243	1719
210	422	464	514	530	523	617	760	866	537	685	836	995	675	816	910	1148	744	886	1058	1395	872	1063	1243	1719
220	470	517	572	590	582	687	846	964	598	763	931	1108	751	909	1014	1278	828	987	1178	1553	971	1184	1384	1914
230	470	517	572	590	582	687	846	964	598	763	931	1108	751	909	1014	1278	828	987	1178	1553	971	1184	1384	1914
240	518	570	630	650	641	757	932	1062	659	841	1026	1221	828	1002	1117	1408	912	1088	1298	1711	1070	1305	1525	2109
250	542	596	660	680	671	792	975	1112	690	880	1074	1277	866	1048	1169	1474	955	1138	1358	1791	1120	1365	1596	2207
260	566	623	689	710	701	827	1019	1161	720	919	1121	1334	905	1095	1220	1539	997	1188	1418	1870	1169	1426	1666	2305
270	590	649	718	741	730	862	1062	1210	751	958	1169	1391	943	1141	1272	1604	1039	1239	1479	1949	1219	1486	1737	2402
280	614	675	747	771	760	897	1105	1259	781	997	1216	1447	981	1187	1324	1669	1081	1289	1539	2028	1268	1546	1808	2500
290	638	702	776	801	790	932	1148	1308	812	1036	1264	1504	1019	1234	1376	1734	1124	1340	1599	2108	1318	1607	1878	2598
300	662	728	805	831	820	967	1191	1357	842	1074	1311	1560	1058	1280	1427	1800	1166	1390	1659	2187	1367	1667	1949	2695
310	662	728	805	831	820	967	1191	1357	842	1074	1311	1560	1058	1280	1427	1800	1166	1390	1659	2187	1367	1667	1949	2695
320	710	781	864	891	879	1038	1278	1456	903	1152	1406	1673	1134	1373	1531	1930	1250	1491	1779	2345	1466	1788	2090	2891
330	710	781	864	891	879	1038	1278	1456	903	1152	1406	1673	1134	1373	1531	1930	1250	1491	1779	2345	1466	1788	2090	2891
340	758	834	922	951	938	1108	1364	1554	964	1230	1501	1786	1211	1466	1634	2060	1335	1591	1899	2504	1565	1909	2231	3086
350	758	834	922	951	938	1108	1364	1554	964	1230	1501	1786	1211	1466	1634	2060	1335	1591	1899	2504	1565	1909	2231	3086
360	806	886	981	1011	998	1178	1450	1653	1025	1308	1596	1899	1288	1558	1738	2191	1419	1692	2019	2662	1665	2030	2373	3281

Grids

Since the cover grilles are the only visible element of the floor convectors, we offer a wide range of materials and designs. The basic division of the grid is with or without a cover strip. We produce grilles in the following materials: anodised aluminium, oak, beech, interior stainless steel.

More information about grids
